Gecko Xtreme Limited Edition Specs & Features

Gecko Extreme Offroad

En-Suite price starting from R687 000,00 inc vat. (All Extras Included)

Finance Available at all Major Banks

Spesifications

Gecko Offroad En Suite Spec Sheet

3x 22 xDimensions

Internal floor to ceiling (headroom): 1910mm

Total length (including A-frame): 5360mm

Body length: 3950mm

Body width: 1940mm

Height from ground (roof closed): 2190mm

Height from ground (roof open): 2570mm

Ground clearance: 500mm

Tow ball height: 550mm

Track width: 1 600mm

Mass and Suspension

Tare: 1 320kg

GVM: 1 900kg

Axle (braked): 2 500kg

Axel load capacity: 2 700kg

Gas Shock Absorbers: Gabriel Safari

Tyres: 245/75/R15

Chassis: Steel galvanised 2 200kg Leaf Springs

12 Volt and 220 Volt Power Supply

Wolmacor Power panel complete battery management system:

220 volt to 12 volt fast and trickle charge

DC-DC 12 volt/12 amp charger

Solar panel MPPT controller (maximum 270 watt)

Digital monitor for voltage and current with battery under voltage lockout

Integrated 220 volt earth leakage and overload circuit breaker

Brad Harrison connection for fridge/freezer

Plug Socket 220 Volt

1 x fridge

3 x external

2 x under bench

2 x internal

1 x loadbox

12 Volt Lights

7 x 6-LED dual white and amber

1 x caralight

2 x bedside light

12 Volt Socket

1 x fridge

1 x other

1 x USB

2 x 100AH Lithium Batteries

2 x Input 50 Amp Brad Harrison Plugs

1 x Charging from car

1 x charging from solar (380W Flexi Solar Panel Included)

Z

Standard Accessories

and Features

L-Shaped Awning Included (Side Optional)

Draft skirt

King size bed – 1 940mm long x 1 830mm wide (Fixed – no pull-out/fold-out manoeuvres required)

Bench seat with back rest (Sufficient seating for 2 adults)

Sliding windows (with insect screens) 1 above seating area and 2 at the head of the bed

Geyser – Hansen 15litre gas and 220volt (connected to shower; vanity mixer tap and kitchen mixer tap)

Water pump – Pressure pump

Built-in shower cubicle with hot and cold water (floor to ceiling height 1 910mm)

Vanity unit includes basin with hot and cold water mixer tap and has a storage cupboard under the basin

Separate, fixed, Thetford cassette toilet (not a “Porta Potti”)

Storage space includes: wall units above bed on left and right hand sides; 3-drawer cabinet under bed; narrow utility cupboard in seating area; removable storage bag above battery

Spare wheel carrier hinges down for ease of access (spare wheel supplied)

  • 2 x 20 litre Jerry cans
  • 2 x 3kg Gas bottles
  • 2 x 70 litre Water tanks

Pantry with fold-down top,  provision for 6 bottles, 4 glasses and ample storage

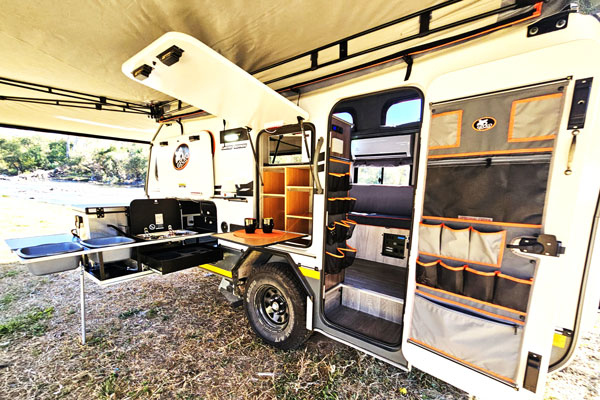

Pull-out kitchen unit with 180kg runner and hot and cold water; 2 x wash-up basins; 1 x mixer tap; Dometic 2 plate gas stove with glass lid; space for 90 litre National Luna fridge/freezer (supplied)

Utility storage Drawer/Duiwels Laai, with 90kg runner (accessed from outside) for chairs, larger items and camping table (Camping Table & Brackets Included)

Front load box; extra large storage for tent poles, tent accessories and various camping necessities

Front load box travel blanket for stone chip damage protection

Additional accessories supplied as standard:

  • Entrance Door Insect Screen
  • 2 x 100AH Lithium Batteries
  • AC 9000 BTU (Infinity DC Inverter Unit)
  • Reverse Camera
  • Entrance Door Handle
  • Custom Interior Bag
  • Vegie Drawer (Storage drawer above stove)
  • Small Drawer System Under Vegie Drawer
  • Bathroom Utility Bag (Shoebag)
  • Utility Bag
  • Entrance Utility Bag
  • Kitchen Drying Top
  • Camp Table & Storage Bracket
  • Kettle Top Bracket
  • Hanging Pole Bag on Side of Caravan
  • Ewick Movers Remote Control (Offroad Plates Guards Included)
  • 90L National Luna Fridge / Freezer 12V
  • National Luna Ice Maker
  • 20L Microwave
  • 270 Degree Awning with Poles (No Sides)
  • Solar Panel 380W Flex 2mm (Depending on Stock Availability)
  • Rear Camera Bluetooth
  • Water Tank Level Reader
  • 20m 220v Power cable
  • Outrigger jack
  • Aluminium Caravan Step
  • Wheel Spanner
  • 2 x Wheel Chocks
  • Pegs

Gecko Offroad reserves the right to alter/amend these specifications at their discretion

Gecko Xtreme Limited Edition Floor Plan

WE CREATE CARAVANS YOU CAN EXPLORE WITH

The Gecko Xtreme allows you to take on epic adventures into distant and rugged terrain knowing you’ll have what it takes.
